Sciospec

Industry leading solutions for electrical impedance tomography

Contact: Paul Luutz (p.luutz (@) sciospec.de

Sciospec Scientific Instruments GmbH
Leipziger Straße 43b
04828 Bennewitz
Germany

  • resistance, capacitance or complex impedance tomography
  • fully parallel architecture for highframe rates
  • flexible scalability to hundreds of channels
  • 60601-1 conformal medical grade safety options
  • advanced features: ECG synchronization, stimulation, etc.
  • combine EIT with other electroanalytical techniques

All the capabilities your EIT application needs

Sciospec’s EIT systems (EIT16/32/64/128+) are specifically designed for measurements for electrical impedance tomography. True parallel measurements and tightly synchronized switching allows for fast frame rates. No matter what channel count you decide to go with, you’ll benefit from:

  • 16 to 256 channels in standard configurations
  • truly simultaneous sampling of all channels
  • completely free configuration of injection patterns
  • broad frequency range (e.g. 100 Hz … 1 MHz)
  • Spectral measurements with frequency sweeps with up to 128 frequencies
  • current excitation from 100 nA … 10 mA
  • frame rates up to 100 fps
  • software with ready to go imaging algorithms
  • advanced features like ECG synchronization, synchronous complex stimulation, etc.
  • fully compatible with EIDORS
  • 60601-1 compliant medical safety features
  • Fully customizable – just ask us
  • OEM available

For easy entry a software provides EIT image reconstruction functionalities for time- and frequency-difference imaging. Alternatively you can just use the MATLAB code and import your data to EIDORS or write your own image reconstruction and import that to our software.

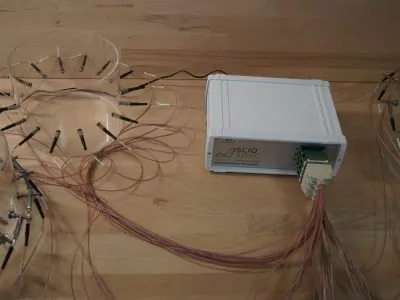

Phantom-Tank

We offer various EIT phantom tanks

  • Standard EIT16 phantom tank: 1 ring with 16 electrodes
  • Standard EIT32 Phantom Tank: 1 ring with 32 electrodes
  • EIT Phantom-Tank 16×2: 2 rings with 16 electrodes each
  • EIT Phantom-Tank 32×2: 2 rings with 32 electrodes each

We are also happy to build a phantom tank according to your wishes

  • Number of electrodes
  • Electrode arrangements (e.g. several levels or grids)
  • Tank layout, diameter and height

Phantom tanks can be booked as an accessory to our EIT instrument
